SCHUNK - Magnetic gripper EMH, size: RP 036, electric

SCHUNK GmbH & Co. KG
エンドエフェクタ
‌
製品番号：: RBTX-SNK-0076
EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.
通常納期：3週間
‌
Max Gripping force
530
N
Weight
1
kg

ハイライト

https://a.storyblok.com/f/298593/fc10cdc61d/rbtx_tool_icon_v1_lil_-svg.svg

Technical details

  • Holding force [N] - 530

  • Magnetic surface [cm²] - 6.08

  • Payload with horizontal magnetic surface [kg] - 8.5

  • Payload with vertical magnetic surface [kg] - 3.5

  • Module temperature increase at 5 activations/minute [°C] - 10

  • Module temperature increase at 15 activations/minute [°C] - 25

  • Activation time [ms] - 300

  • Min. ambient temperature [°C] - 5

  • Max. Ambient temperature [°C] - 50

  • Dead weight [kg] - 1

  • Protection class IP - 52

  • Rated voltage [V] - 24

  • Voltage type - DC

  • Max. Current Power [A] - 3.1

  • Max. Current Power [A] - 0.15

  • Controller electronics - integrated

https://a.storyblok.com/f/298593/4427329c88/2023-07-27_16_41_47-fwebp-b1440__1315__1440__und_9_weitere_seiten_-_gesch__ftlich_____microsoft_edge.jpg

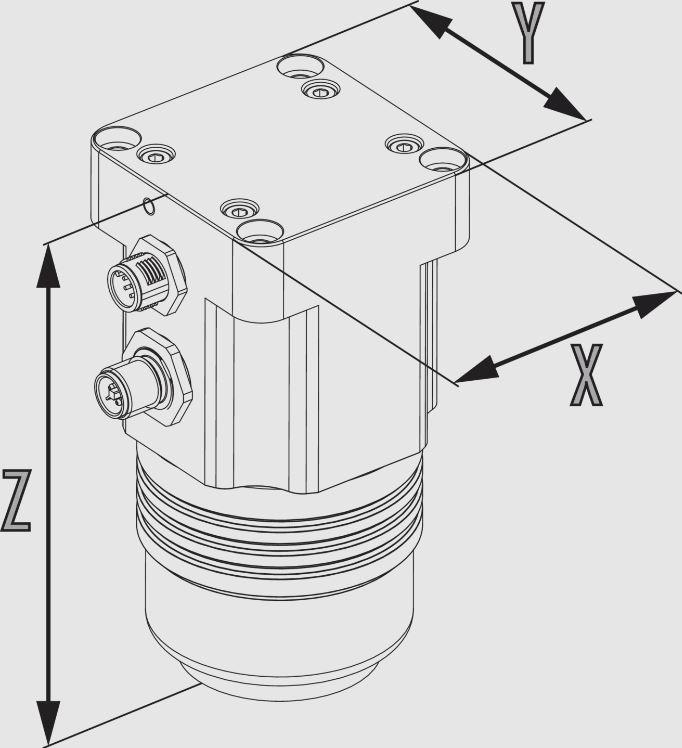

寸法

https://a.storyblok.com/f/298593/d39b511f8e/bild1.svg

General notes on the series

RBTXでローコストソリューションを構築

ダウンロード

CAD file
Operating manual
EMH-RP 036 Magnetic field evaluation document
